Architecture

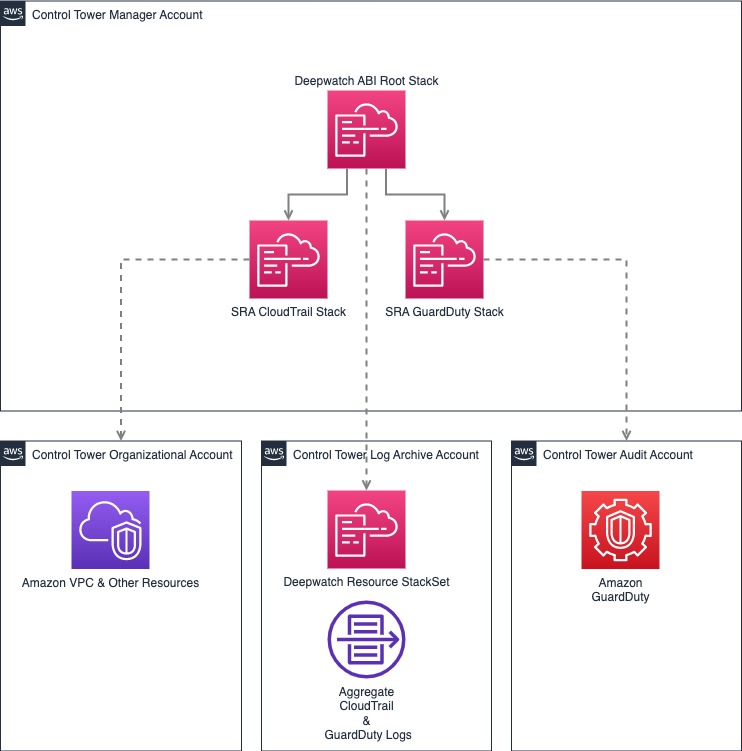

Deploying this ABI package with default parameters builds the following architecture:

As shown in the diagram, this solution sets up the following:

Enable organization level CloudTrail

• Creates an organizational trail for all accounts in the organization in the management account.
• A customer managed KMS key for the AWS Organizations CloudTrail logs and Amazon Simple Storage Service (Amazon S3) server-side encryption in the audit account.
• AWS Secrets Manager secret containing the customer managed KMS key ARN in the audit account.
• Amazon S3 bucket in the log archive account, where the organization CloudTrail logs are sent for all accounts in the AWS Organization.

Enable Amazon GuardDuty at organization level

• Enables GuardDuty for all AWS accounts that are current members of the target organization in AWS Organizations
• Turns on the Auto-Enable feature in GuardDuty, which automatically enables GuardDuty for any accounts that are added to the target organization in the future
• Uses the organization’s Audit account as the GuardDuty delegated administrator
• Creates an Amazon Simple Storage Service (Amazon S3) bucket in the logging account and configures GuardDuty to publish the aggregated findings from all accounts in this bucket
• Assigns a life-cycle policy that transitions findings from the S3 bucket to Amazon S3 Glacier Flexible Retrieval storage after 365 days, by default
• Enables GuardDuty S3 protection by default, with the option to enable EKS and Malware protection.

Deepwatch Managed Detection and Response (MDR) Integration

• Deploys a stack set from the management account that creates the following resources in the Log Archive account:
  • Event notification on S3 bucket where the organizational GuardDuty and CloudTrail logs are stored
  • SNS Topic and SQS queues to process the S3 event notifications
  • Lambda function for processing and filtering of messages in SQS queues
  • IAM Role for cross-account role assumption by Deepwatch MDR Platform
